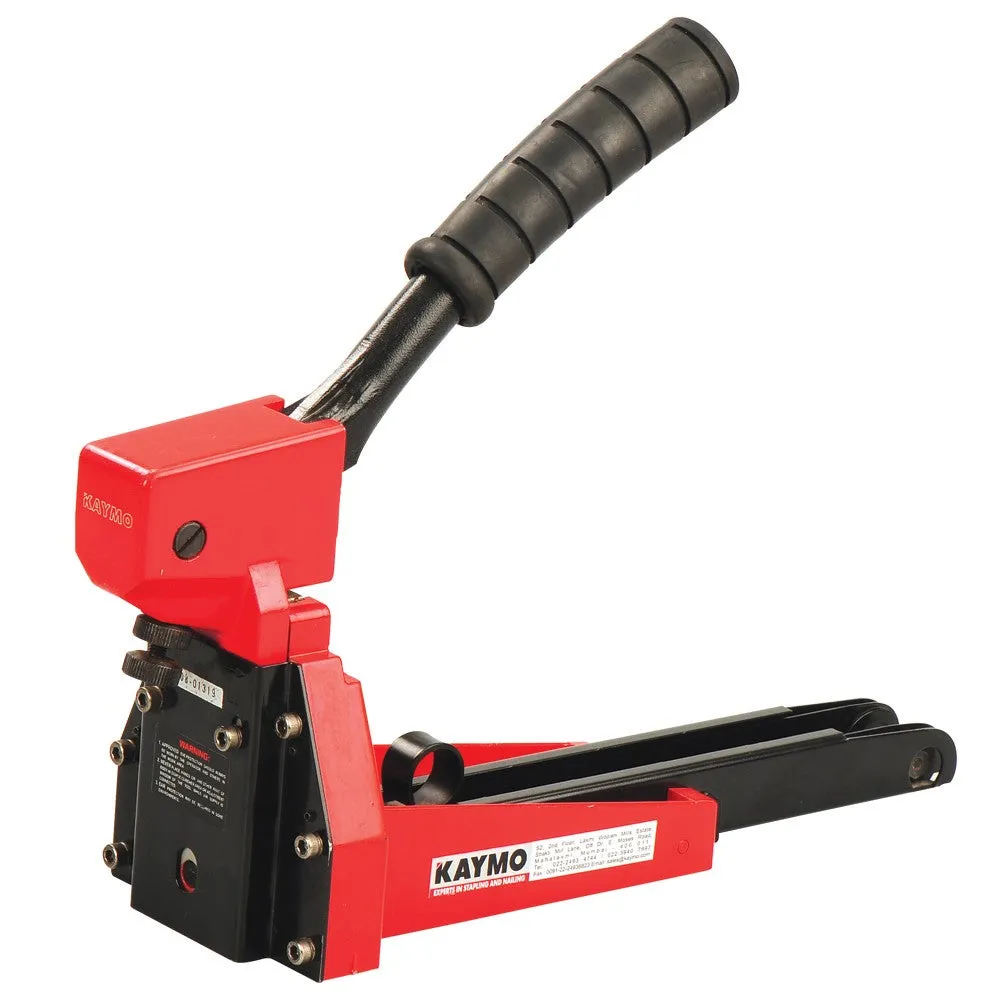

Name: HAND BOXER KAYMO PRO-3522 COMBI 18/22
SKU: 68974

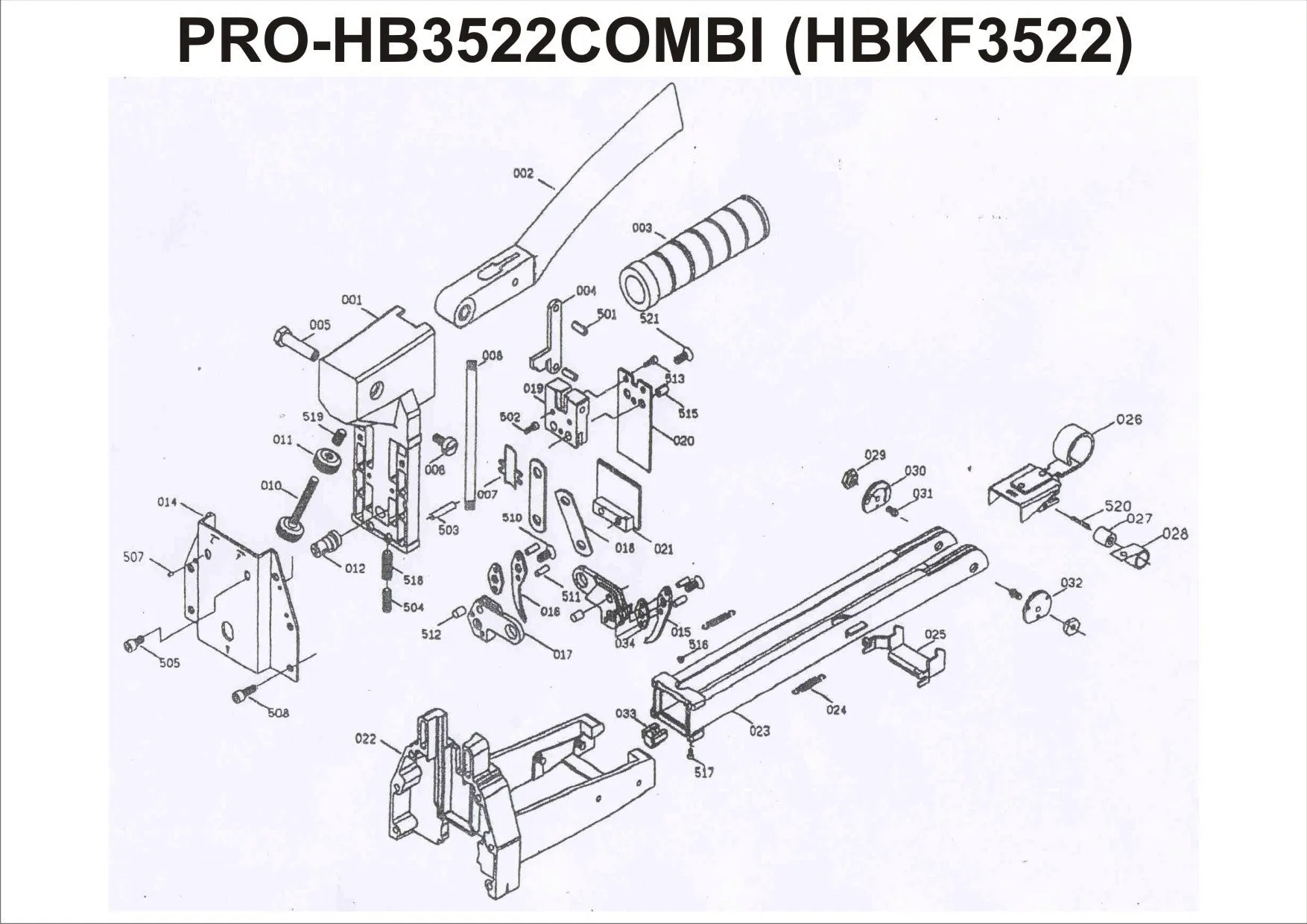

	.	TOOL NAME:	PRO-HB3522COMBI					REV.1ST APRIL 2022
SR	FMS	PART CODE	PART NAME	ALT CODE	SR	FMS	PART CODE	PART NAME	ALT CODE
1		A01101205	BODY		28	FMS	A00103401	SPRING	A00103403

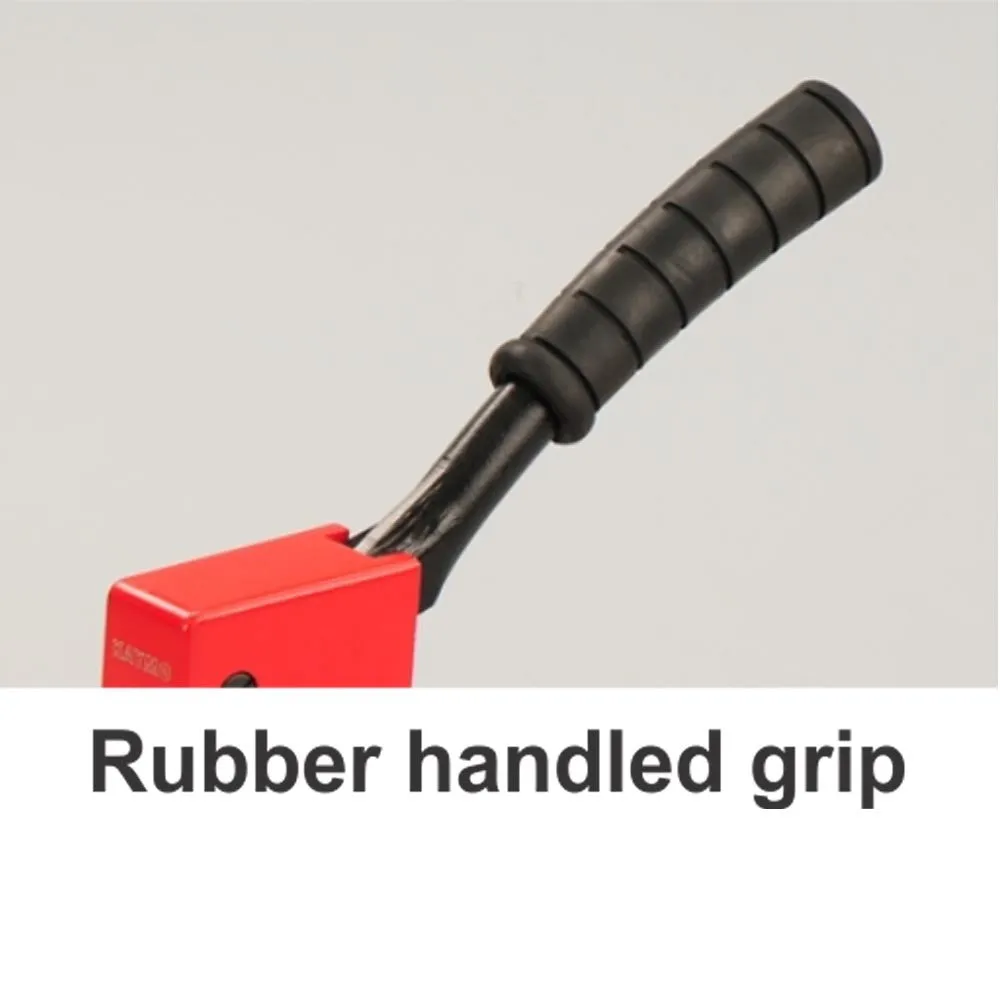

2		A01102701	HANDLE		29		A00607101	ROD UNIT
3		A00300301	HANDLE SLEEVE		30		A00103903@	RIGHHT PUSHER GUIDE
4		A01103001	LINK		31		A00103203	ROD UNIT
5		A00300501	PIVOT PIN		32		A00103904@	LEFT PUSHER GUIDE
6		A00300601	PIVOT SCREW		33		A00105601	BRACKET
7		A01102801	COVER		34		A00105001	WASHER
8		A01102901	SPRING		501		BAA050020	SPRING PIN

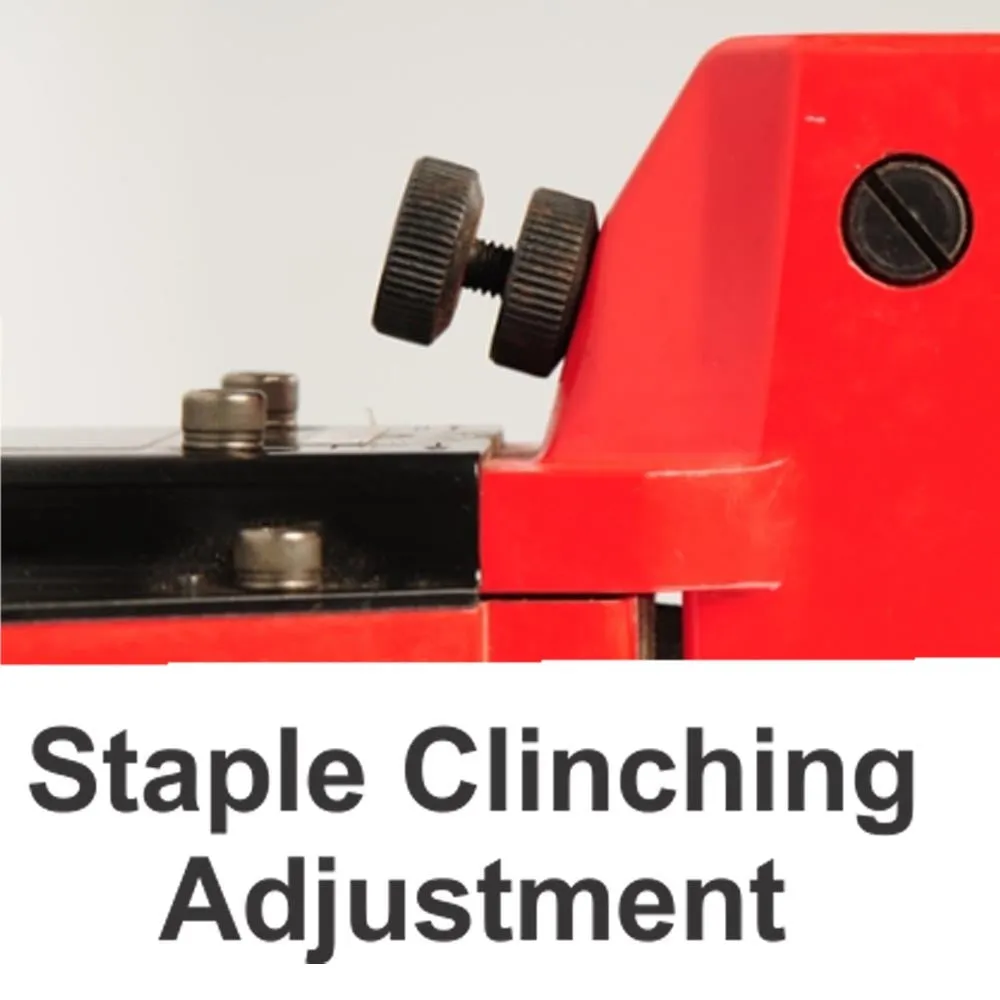

10		A00301001	ADJUSTMENT SCREW	A00301002	502	FMS	BAC0404062	HEX.SOC.HD.BOLT	KM0406
11		A00301101	ADJUSTMENT NUT		503		A00104701	ROD
12		A00101801	ADJUSTING ROD		504		BAC0306142	HEX.SOC.HDLESS.BOLT
14		A01102502	FRONT PLATE		505	FMS	BAC0605142	HEX.SOC.HD.BOLT	KM0520
15		A01200501	RIGHT TEETH		507		BAA030010	SPRING PIN
16	FMS	A01200601	LEFT TEETH		508	FMS	BAC0605142	HEX.SOC.HD.BOLT	KM0520
17		A00102301	TEETH SEAT		510	FMS	BAC0205122	HEX.SOC.FLAT COUNTER SUNK HD.SCREW
18		A00102401	PLATE		511	FMS	A00104501	PIN
19		A00301902	BLOCK		512		A00104602	PIN
20		A01201708	DRIVER		513		BAC0604102	HEX.SOC.HD.BOLT
21		A00102702@	COVER UNIT		515		BAA060016	SPRING PIN
22		A02100403@	MAGAZINE SEAT	A02100407@	516		BAD01041	LOCK NUT
23	FMS	HAA-19-35-P7-S	MAGAZINE	KFCMP00001	517		BAC0404202	HEX.SOC.HD.BOLT
24	FMS	A01102403	SPRING		518		BAG010602	HELI-COIL
25		A01102201	BRACKET		519		BAG010601	HELI-COIL
26	FMS	A00103709@	PUSHER UNIT		520		BAA040016	SPRING PIN
27		A00103501	ROLLER		521		BAC0204062	HEX.SOC.FLAT COUNTER SUNK HD.SCREW

To close top of corrugated cartons
